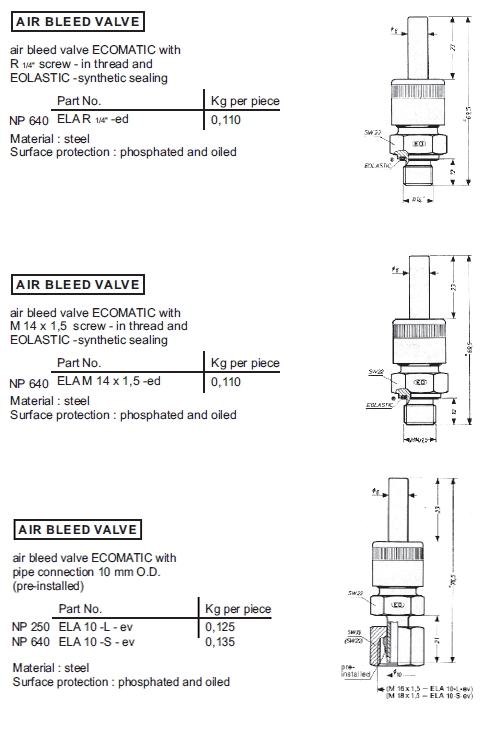

EOMATIC-AIR BLEED VALVES : ELA

Easy fitting - free attendance - nearly unlimited durability - simple - safe - realibility economical.The machine can be set in operation immediately. No inaccuracies in regulating owing to includs of air in the pressure medium. Saving up of costs, as non-productive times of deaeration fall out.

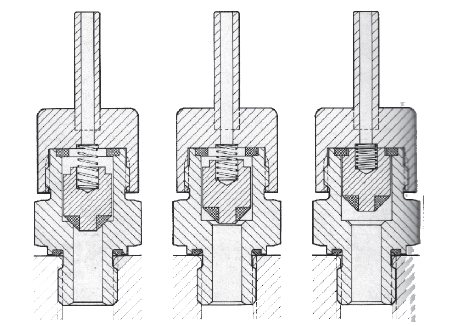

The function of the EOMATIC - air bleed valves is based on the different procedure of gazeous liquid mediums under pressure in dependence of the viscosity. A piston which is led in the bore of body with a certain positive allowance causes the opening and closing at the moment when the mad is set in operation or shut down. On setting in operation the accumulated air escapes until the column of the pressure medium reaches the piston and pushes it upwards due to the occuring back up liquid level in order to close the air escaping socket safe against high pressure. On letting off the pressure the spring loosens the piston by means of which the previously closed outlet bore gets free, and the procedure can be repeated. The special from of the closing piston prevents a suction of air in case of partial vacuum.

For the time being the ECOMATIC- air bleed valves are only deliverable for mediums on mineral oil basis and within the temperature limits from -20 Cup +900 C. Special Prospectus No. 35 on demand.
